Zone Leak Detection

Many situations require monitoring large areas for the presence of water. The Darwell AT1-M modular zone water detector module provides an excellent solution for these needs. This unique technology combines proven reliability with the utmost in flexibility. The low maintenance sensing cable provides the AT1-M with the suitability for a wide range of applications, including:
· Perimeter monitoring
· Pipe leak detection
· Under-floor detection
· Air conditioner vicinity monitoring

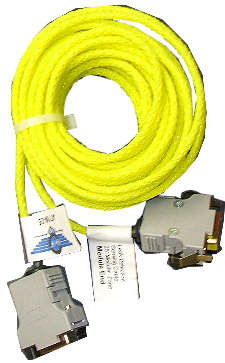

Sensing Cable, AT1-15M, AT1-25M, AT1-30M, AT1-50M
Used in conjunction with the AT1-M module this unique sensing cable is designed to absorb moisture and activate the AT1-M's output relay when water levels are sufficient to complete an electrical circuit. Best of all, the sensing cable is non-destructive, so that when the water evaporates, the unit may be automatically reset with no need for cable replacement. Cables can be coupled together up to 100 feet.

Features include:
· Non-destructive sensing cable
· Durable mesh cloth construction
· Self locking cable connectors



AT1 Zone Detection Module



The AT1-M is a Modular Zone Water Detector module used with modular zone (AT1-XXM) sensing cable. The AT1-M can be operated with 12-24 AC or DC voltages. For application flexibility, form "C" relay points are provided to connect to a MPR, GMP or similar monitoring system. A galvanized steel enclosure is standard. The AT1-XXM sensing ribbon is designed to absorb moisture and activate the alarm signal when enough water is present to complete the electrical circuit.

Features
Fail-safe Circuitry
12-24 Volt Power Capability
Form "C" Relay Output (1A/120VAC)
Woven Water Sensing Cable
Encapsulated Electronics
Sensing Cable Supervision
Self Contained System
(No special monitor panel required)
Complete Design Flexibility
Simple Installation
Patent Pending

Specifications
Model Number - AT1-M
Power - 12-24 Volt AC @ DC/50mA
Alarm Output - Form "C" Relay Contacts
Environmental - 32-125F/0-95%Rh
Size - 5"L x 3"H x 3.25"D
Weight -1.4 lbs.
Sensing Cable - AT1-XXM
(XX = Length)
Lengths - 15', 25' or 50' Available
Width - 3/8 "



Some applications well suited for these packages include:

Water heater emergency drain pans
Air conditioner condensation drain pans
Under-the-floor computer room monitoring
Flood drains

AT1-M Cut Sheet

AT1-MD Dual Contact Cut Sheet

AC-Kit Zone Detector

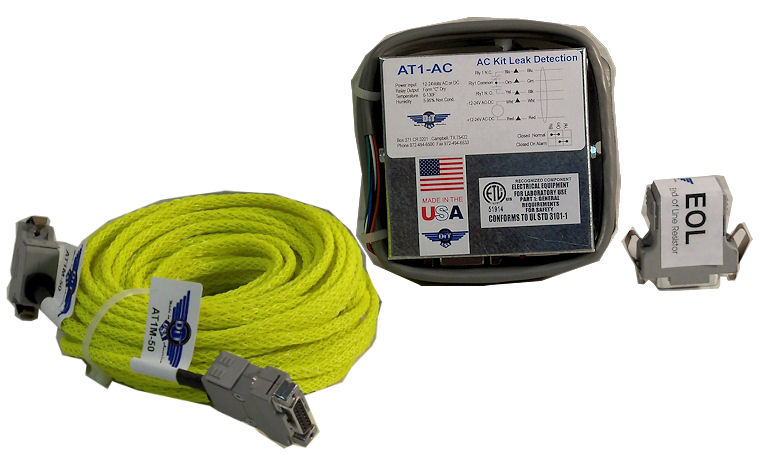

The AC Kit combines all the features found individually in our Aquatrak Modular Zone Water Detection system, into one simple to install package for a single AC unit. The AT1-AC Kit is a complete solution for extended water detection requirements. The kit comes with all required components for installation including a 10' pre-wired electrical connection cable. Sensing cables are available in 25', 30', and 50' lengths. Hold down clips are included for attaching the cable to the sub-floor.

Features
Fail-safe Circuitry
12-24 Volt Power Capability
Form "C" Relay Output (1A/120VAC)
Woven Water Sensing Cable
Encapsulated Electronics
Sensing Cable Supervision
Self Contained System
(No special monitor panel required)
Complete Design Flexibility
Simple Installation
Patent Pending

Specifications
Model Number - AT1-AC1, AT1-AC2 and AT1-AC3
Power - 12-24 Volt AC @ DC/50mA

Alarm Output - Form "C" Relay Cont.
Environmental - 32-125F/0-95%Rh
Size - 5"L x 3"H x 3.25"D
Weight - 1.4 lbs.
Sensing Cable -
AT1-AC1 = 25'
AT1-AC2 = 30'
AT1-AC3 = 50'
Cable Clips -AC1=10, AC2=12 or AC3=18

Width - 3/8 "
Interconnect Cable - 10'



Some applications well suited for these packages include:

Water heater emergency drain pans
Air conditioner condensation drain pans
Under-the-floor computer room monitoring
Flood drains

AT1-AC Kit Cut Sheet


AQ1 Self-Contained Solution

The DiT, Inc. AQ-One is designed to provide a simple solution for small leak detection requirements.

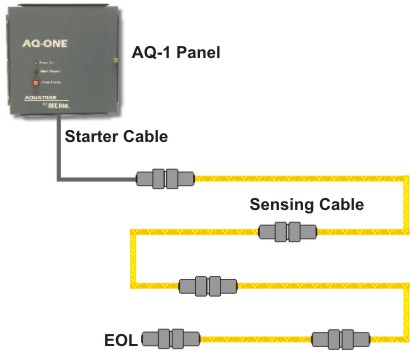

The AQ-One kit includes a wall mounted display and alarm panel, customer defined sensing cable
lengths up to 200 feet, starter cable, power transformer, hold down clips and alarm test plug. The display and alarm panel offers a green normal led and a red alarm led. A silence button will silence the onboard audible alarm.

The AQ-One provides two sets of normally open or normally closed non-powered contacts for remote
monitoring connections. Power on and alarm leds indicates an alarm condition. An alarm silence
switch can be depressed to silence the audible alarm.

The AQ-One is the perfect choice for customers needing a simple-to-install and easy-to-operate zone leak detection system.



Specifications
Model Number -Base Unit AQ-One-XXX
Electrical - Power 12Volt (Trans. Provided )
AlarmInputs - Number of Inputs
Input Types AT1-M AquaTrak Cable Up to 200’.
Output Types 2 Form “C” Dry Contacts
Wall Display - Display Type 2 LEDs
Keypad Silence Switch
Environmental - 0-125 Degrees F/5-95% RH
Model Number
AQ-1-25 Includes 25’ Sensing Cable
AQ-1-50 Includes 50’ Sensing Cable
AQ-1-75 Includes 75’ Sensing Cable
AQ-1-100 Includes 100’ Sensing Cable
AQ-1-150 Includes 150’ Sensing Cable
AQ-1-200 Includes 200’ Sensing Cable

Features
Adjustable Probe Height
Remote Electronic Eclosure
Wide Range of Operating Voltages
Form "C" Relay Output for Alarms
(1Amp/120Vac Rated)
Silver Sensing Probes
Red LED indicator light
Encapsulated Electronics
Failsafe Circuitry (DD1-S Only)
Self Contained System
(No special monitor panel required)
Design Flexibility
Simple Installation

Specifications
Model Number - DD1
Power - 12-24 Volts AC or DC @ 50MA
Alarm Output - Form "C" Relay Contacts
Indicator Light - Red LED
Contacts - (1Amp/120Vac Rated)
Environmental - 32-125F/0-95%Rh
Size - 5"L x 5"H x 3.25"D
Weight - 2.0 lbs.



Model Number - DD1-S
Power - 12-24 Volts AC or DC @ 50MA
Alarm Output - Form "C" Relay
Indicator Light - Red LED
Contacts - (1Amp/120Vac Rated Reverse Acting)
Environmental - 32-125F/0-95%Rh
Size - 5"L x 5"H x 3.25"D

Some applications well suited for these packages include:

Water heater emergency drain pans
Air conditioner condensation drain pans
Overflow Drain Pans

AQ-1 Cut Sheet

AQ-1 Manual
