The TripMaster line of Off-The-Shelf emergency power off control centers have a proved track record for reliable operation in your critical high-tech facility. With over 22 years of real time experience DiT, Inc. has been solving this crucial control requirement without flaws. Our approach is simple and reliable. We don't use PLC or microprocessors in the shutdown control to prevent accidental shutdowns of data centers due to poor coding or processor resets. There is no reason to insert potential faults into this type of control system. The TripMaster series simplifies designing EPO control systems by providing individual relay outputs for up to 20 different systems in the data center or high-tech facility. The standard design of the TripMaster eliminates the problems found when using custom designed and site built EPO control systems.
Now with three base control centers we can provide the proper EPO control for any application. With relay switching loads from shunt trip to 10 Amps of continuous load capability your EPOCC is boxed and ready to install. From a single EPO input to three field selectable choices, with time delay protection or instantanious EPO inputs, the choice is easy. Our keylocked Safe/Inhibit switches make it easy to install and maintain this critical control without jeopardizing the operation of the data center.
Put DiT, Inc's series of TripMaster EPO Control Centers to work for your data center. |
|

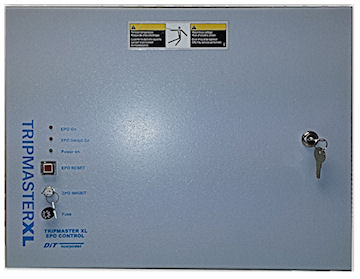

TripMasterXL
EPO Control
The TripMasterXL is our reliable workhorse for 22 years. With thousands installed it has provided the base and target for all Off-The-Shelf EPO controls. The specidied solution by engineers in every type of hig-tech facility, the TripMasterXL has performed flawlessly. Equipped with time delay and bachup battery this has been the standard for data center emergency power off controls for over two decades. Add the AD remote alarm dialer to the system for immediate Text Measses, Emails, SNMP or ModBUS alerts when a problem ocorrs. Explore the TripMasterXL solution. More..
|
|

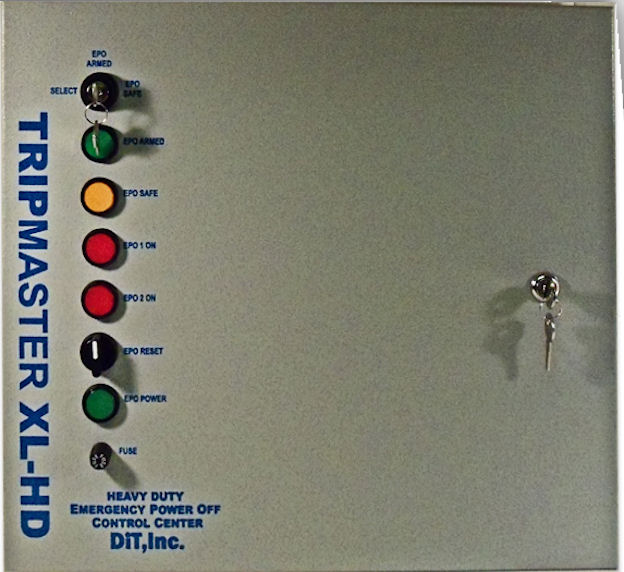

TripMasterXL-HD
EPO Control
The TripMasterXL-HD brings added features, EPO input options and heavy duty outputs to your project. The 22mm industrial leds and switches make the display easy to view. 16 MOV protected relay contacts insure long life of relay control contacts. An audible alarm sounds when in the Safe mode to alaert operators of off normal condition. Add the AD remote alarm dialer to the system for immediate Text Measses, Emails, SNMP or ModBUS alerts when a problem ocorrs. Explore the TripMasterXL-HD solution. More..
|

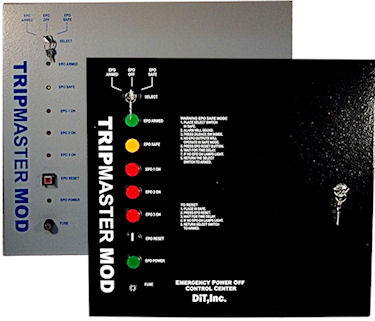

TripMasterMOD
EPO Control
Our TripMasterMOD comes in two versions, the DP (data processing) and the IG (industrial grade). The MODs offer the most features and field configurable options of all our EPOCC controls. The control functions are the same for both versions the only diffence is the color and display. The IG version has 22mm industrial leds and switches while the DP uses our standard high visability leds and switches. The MOD can be ordered with 4, 8, 12, 16 or 20 heavy duty (10Amp), MOV protected relay outputs. Three independant EPO inputs can be equipped with time delays or instantaneous. An audible alarm sounds when in the Safe mode to alaert operators of off normal condition. Add the AD remote alarm dialer to the system for immediate Text Measses, Emails, SNMP or ModBUS alerts when a problem ocorrs. Explore the TripMasterMOD features. More...
|
